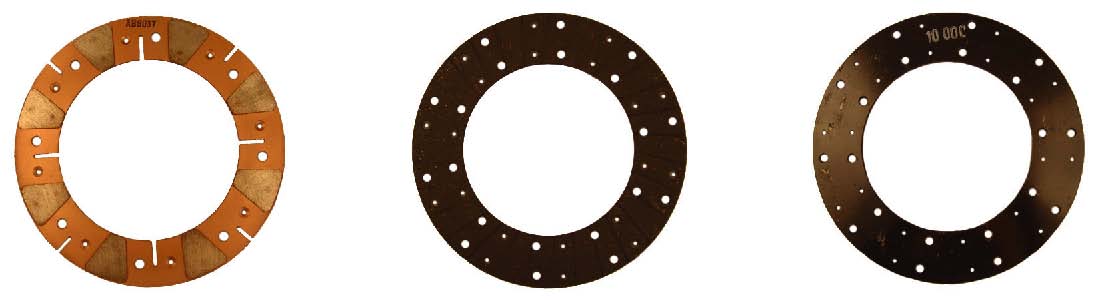

PERFORMANCE FACINGS
 |
||||||
|---|---|---|---|---|---|---|
FMSI Pattern |
Part Number |
Material |
Size OD (in) |
Size OD (MM) |
Rivet Holes |
Drill Pattern |
779 |
AB779 |
CERAMIC |
7.875 |
200.0 |
16 |
ASTR |
909 |
AB909 |
CERAMIC |
9.125 |
231.8 |
32 |
DGAP |
1061Z |
AB1061Z |
CERAMIC |
10.000 |
254.0 |
32 |
DGAP |
1166A |
AB1166A |
CERAMIC |
10.875 |
276.2 |
40 |
DGAP |
8037 |
AB8037 |
CERAMIC |
8.859 |
225.0 |
16 |
GRASTR |
10000 |
AB10000 |
CERAMIC |
10.406 |
264.3 |
40 |
DGAP |
11004 |
AB11004 |
CERAMIC |
11.750 |
298.5 |
40 |
DGAP |
750D |
HPP750D |
METAL BACK |
8.000 |
203.2 |
16 |
GRASTR |
909 |
HPP909 |
METAL BACK |
9.125 |
231.8 |
32 |
DGAP |
1033A |
HPP1033A |
METAL BACK |
10.000 |
254.0 |
32 |
DGAP |
1166A |
HPP1166A |
METAL BACK |
11.000 |
279.4 |
40 |
DGAP |
8037 |
HPPP8037 |
METAL BACK |
8.860 |
225.0 |
16 |
GRASTR |
8050 |
HPP8050 |
METAL BACK |
8.500 |
215.9 |
16 |
GRASTR |
8057 |
HPP8057 |
METAL BACK |
8.386 |
213.0 |
16 |
GRASTR |
8067 |
HPP8067 |
METAL BACK |
8.313 |
211.2 |
16 |
GRASTR |
8089 |
HPP8089 |
METAL BACK |
8.625 |
219.1 |
||
9042 |
HPP9042 |
METAL BACK |
9.250 |
235.0 |
16 |
GRASTR |
9050 |
HPP9050 |
METAL BACK |
9.764 |
248.0 |
16 |
GRASTR |
9051 |
HPP9051 |
METAL BACK |
9.875 |
250.8 |
16 |
GRASTR |
9071 |
HPP9071 |
METAL BACK |
9.450 |
240.0 |
16 |
GRASTR |
10000 |
HPP10000 |
METAL BACK |
10.400 |
264.2 |
40 |
DGAP |
11004 |
HPP11004 |
METAL BACK |
11.750 |
298.5 |
40 |
DGAP |
* Metal Back Facing does not contain asbestos.
FMSI Pattern |
Part Number |
Material |
Size OD (in) |
Size OD (MM) |
Rivet Holes |
Drill Pattern |
|---|---|---|---|---|---|---|
780A |
W780A |
FIBERTUFF |
7.875 |
200.0 |
16 |
GRASTR |
785A |
W785A |
FIBERTUFF |
7.480 |
190.0 |
16 |
GRASTR |
1056E |
W1056E |
FIBERTUFF |
10.000 |
254.0 |
36 |
DGAP |
1166A |
W1166A |
FIBERTUFF |
11.000 |
279.4 |
40 |
DGAP |
1174 |
W1174
|
FIBERTUFF |
11.000
|
279.4 |
32 |
DGAP
|
1185A |
W1185A |
FIBERTUFF |
11.000 |
279.4 |
40 |
DGAP |
1236C |
W1236C |
FIBERTUFF |
12.875 |
327.0 |
54 |
TGAP 54 |
1388 |
W1388 |
FIBERTUFF |
13.000 |
330.2 |
54 |
TGAP |
8037 |
W8037 |
FIBERTUFF |
8.875 |
225.4 |
16 |
GRASTR |
8052 |
W8052 |
FIBERTUFF |
8.480 |
215.4 |
16 |
GRASTR |
10000 |
W10000 |
FIBERTUFF |
10.406 |
264.3 |
40 |
DGAP |
10000A |
W10000A |
FIBERTUFF |
10.406 |
264.3 |
32 |
DGAP |
10015B |
W10015B |
FIBERTUFF |
10.354 |
263.0 |
40 |
DGAP |
11004 |
W11004 |
FIBERTUFF |
11.750 |
298.5 |
40 |
DGAP |
11013A |
W11013A |
FIBERTUFF |
11.024 |
280.0 |
18 |
GRASTR |
11015 |
W11015 |
FIBERTUFF |
11.000 |
279.4 |
36 |
DGAP |
11019 |
W11019 |
FIBERTUFF |
11.020 |
279.9 |
36 |
DGAP |
11020 |
W11020 |
FIBERTUFF |
11.024 |
280.0 |
18 |
GRASTR |
N/A |
W48609A |
FIBERTUFF |
8.380 |
212.9 |
16 |
|
N/A |
W48615B |
FIBERTUFF |
9.220 |
234.2 |
36 |
|
N/A |
W500088 |
FIBERTUFF |
12.800 |
325.1 |
36 |
 |
